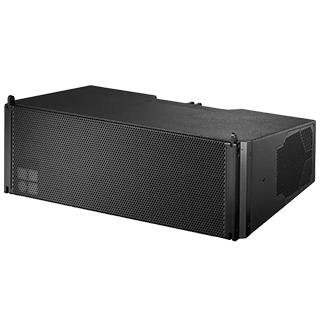

KSLi12 Loudspeaker

The KSLi12 is the installation-specific version of the KSL12 line array loudspeaker, designed for professional sound reinforcement in medium to large-scale venues. The KSLi12 delivers a horizontal dispersion of 120 degrees with constant directivity across its full frequency range. It features two front-facing 10-inch neodymium low-frequency drivers, supported by two side-firing 8-inch neodymium low-frequency drivers.

Its coaxial mid-high section includes an 8-inch mid-frequency driver and two high-frequency compression drivers with 1.4-inch exits and 3-inch voice coils, arranged on a dedicated wave shaping component. The loudspeaker is actively powered by a compatible d&b amplifier, with one channel driving the 10-inch drivers and the second powering the remaining components via an internal passive crossover.

Installation-focused, three-way line array loudspeaker designed for medium to large-scale applications.

Driver Configuration:
Low Frequency: Two 10-inch and two 8-inch drivers
Mid Frequency: One 8-inch driver
High Frequency: Two compression drivers with 1.4-inch exits and 3-inch voice coils

Horizontal Coverage: 120 degrees
Maximum Sound Pressure Level: 144 dB
Weight: 57 kilograms (126 pounds)
