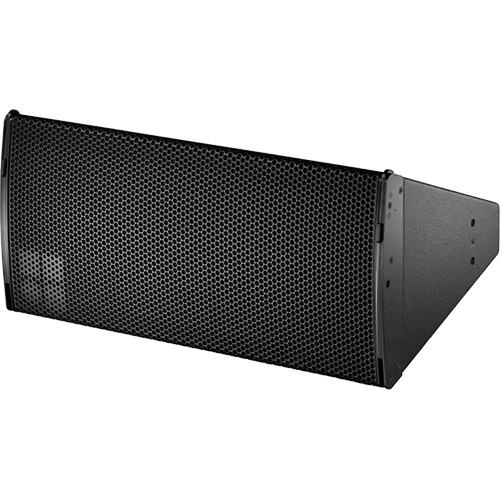

ALi60 Loudspeaker

The ALi60 loudspeaker is the installation version of the AL60 augmented array, engineered for medium-scale sound reinforcement applications. Designed for flexible deployment, the ALi60 supports vertical suspension of up to four modules using the AL Flyingframe top, creating a consistent 60-degree horizontal dispersion. Alternatively, it can be configured in a horizontal array of up to four units with the AL Flying adapter. This passive two-way system features two 10-inch neodymium low-frequency drivers and a 1.4-inch exit high-frequency compression driver with a 3-inch diaphragm. These components are arranged symmetrically around the central axis and work in conjunction with a precision wave shaping device and passive crossover network to ensure uniform coverage. Splay angles between modules range from 20 to 40 degrees, allowing arrays to achieve total horizontal coverage of up to 150 degrees. Constructed from marine-grade plywood and finished with impact-resistant black paint, the ALi60 is protected by a metal grille with an acoustically transparent backing and includes three M10 inserts for secure mounting.

Installation specific medium format 2-way augmented array loudspeaker

• Components 2 x 10″ LF driver, 1 x 1.4” exit compression driver with 3″ coil
• Dispersion 60° x 30°
• SPLmax 139 dB
• Weight 22 kg / 48.5 lb
